Carriage Mud Dredging Boat
, 20 Inch Mud Dredging Boat
, Cutter Suction Dredger Boat

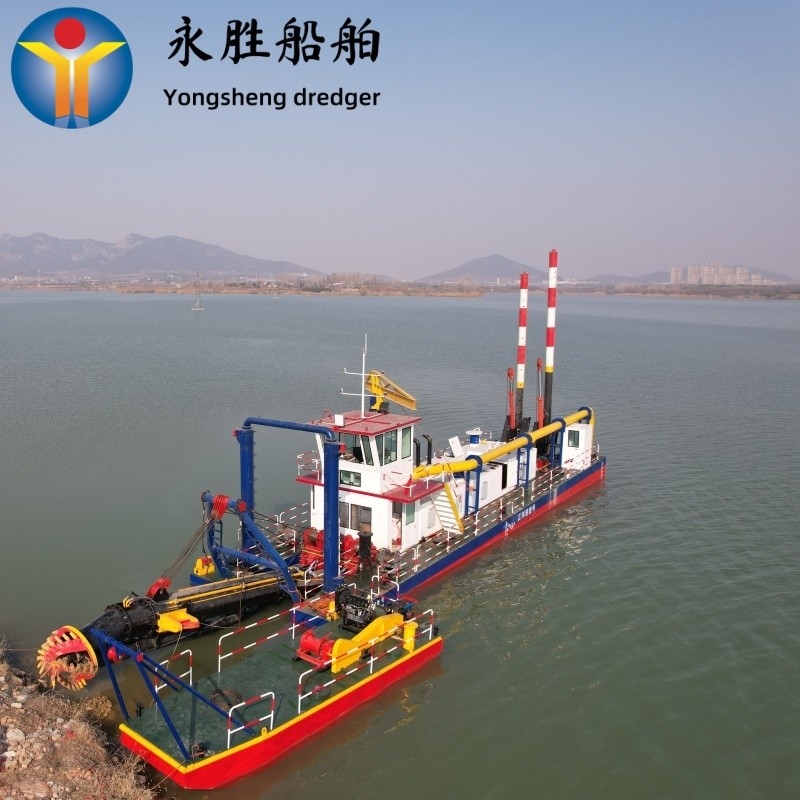

20 Inch Mud Dredging Cutter Suction Dredger Boat With Carriage
cutter suction sand dredger is perfectly suited for dredging sand, mud, gravel in the river or lake, Pond
and lagoon. configuration of Cummins marine diesel engine and Shijiazhuang dredge pump, this model
dredger can keep perfect and stable performance.
Besides, it can also be perfectly in dredging work of port construction and navigation channel maintenance
with flexible operation. It can dredge sand, mud, clay, silt or other sediment in the water bed for passing vessel.
| Model list for hydraulic cutter suction dredger |
| Model |
Inch |
Diameter
pipe
|
Water
flow
|
Solid
capacity |
Total
power
|
Dredging
depth
|
Discharge
distance
|
| YSCSD150 |
6 Inch |
150 mm |
260 m3/h |
30 cbm/h |
102 KW |
4m |
600 m |
| YSCSD200 |
8 Inch |
200 mm |
600 m3/h |
80 cbm/h |
213 KW |
6m |
800 m |
| YSCSD250 |
10 inch |
250 mm |
1,000 m3/h |
160 cbm/h |
367 KW |
8m |
1,100 m |
| YSCSD300 |
12 inch |
300 mm |
1,500 m3/h |
240 cbm/h |
591 KW |
10 m |
1,100 m |
| YSCSD350 |
14 inch |
350 mm |
2,400 m3/h |
360 cbm/h |
971 KW |
12m |
1,200 m |
| YSCSD400 |
16 Inch |
400 mm |
3,000 m3/h |
500 cbm/h |
1,057 KW |
14m |
1,400 m |
| YSCSD450 |
18 Inch |
450 mm |
3,500 m3/h |
700 cbm/h |
1,462 KW |
15m |
1,500 m |
| YSCSD500 |
20 Inch |
500 mm |
3,800 m3/h |
760 cbm/h |
1,648 KW |
15m |
1,600m |
| YSCSD600 |
24 Inch |
600 mm |
6,000 m3/h |
900 cbm/h |
2,511 KW |
15m |
1,800 m |
| YSCSD650 |
26 Inch |
650 mm |
7,000 m3/h |
1,400 cbm/h |
3,705 KW |
Max.18m |
1,800m |
yongsheng designed, customized, and built dredger include:
Dredging depth: 1-30m
Water Flow Capacity: 500-10000m3/H
Discharge Distance: 100m-5000m
Working Scopes & Dredging Medium: Sand, Clay, Mud, Rock, Sediment
1) Sand Dredging
2) Dredging of Waterways
3) Land Reclamation
4) Port development and maintenance,
5) inshore water, Sea, River, Coastal, Reservoir, Lake, Dam Dredging,
packing and shipping
1. Professional transportation personnel will inspect and maintain the products throughout the
transportation process to ensure that the products are intact.
2. We provide one-stop services including product customization, detailed communication, product
production, product consultation, product packaging, loading, transportation and security inspection.
3. Customers are welcome to visit our factory and give us guidance.
FAQ:
Need for reply:
1. How many cubic meter per hour for the clear water flow?
2. How many meters for the dredging depth?
3. How many meters for the discharge distance?
4. Will you use the dredger in the river,lake,sea or channel?
